Compact semi-collimated backlight

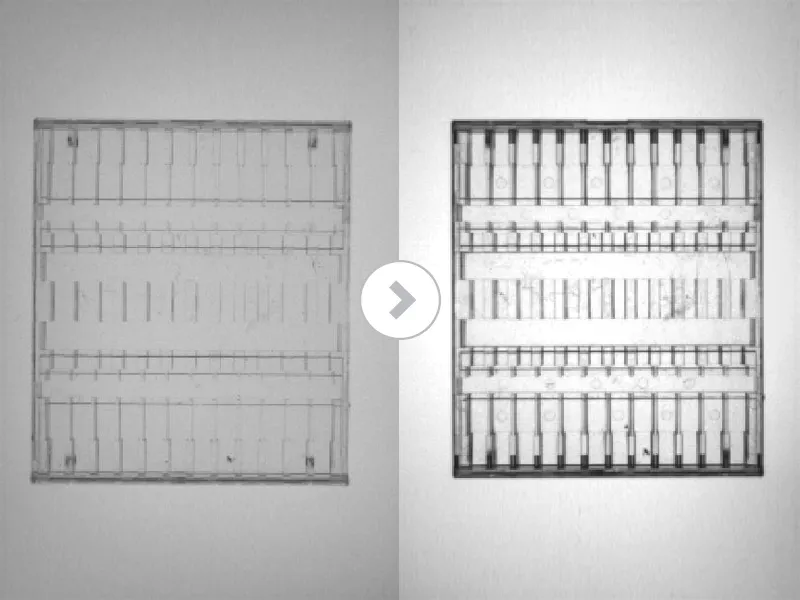

The TPL Vision CSBACK is designed for inspecting and measuring transparent plastics, rounded components and precisely defined edges. Its narrow illumination angle reduces light wrapping around the object, improving outline contrast for edge detection and defect analysis.
- Compact semi-collimated illumination
- Over 90% surface uniformity
- Ten nominal sizes from 50 × 50 to 200 × 200 mm
- Blue 470 nm, green 525 nm, red 630 nm, infrared 880 nm and white options
Select a nominal size and wavelength to view the corresponding model and price. Consult the technical sheet for exact dimensions.
